Zaha Hadid Architects

London, United Kingdom

Fabrication and installation of sculptures at the Sonnabend Art Gallery in Manhattan.

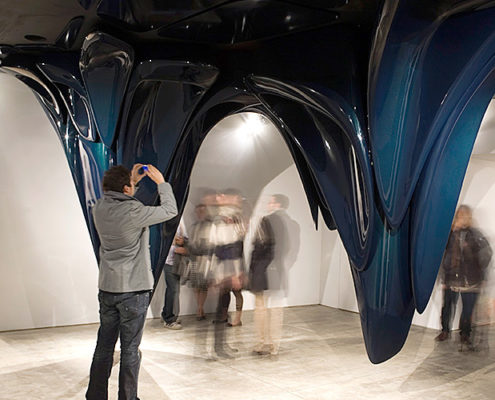

  • Stalactites“, 18 individual hanging sculptures that fill a 20’X20′ room
  • Wall Relief 1,” 3 part modular sculpture mounted to a 20-plus foot wall
  • Fiberglass and epoxy resin fabrication to customer’s provided 3D models
  • Transportation of sculptures to Manhattan
  • Customization of gallery rooms to accommodate weight and size of sculptures
  • Installation of sculptures
  • Crew on-site in NYC for two weeks to prepare exhibit opening

Zaha Hadid is known as an innovative architect who constantly tests the boundaries of architecture, urbanism and design. In the Sonnabend exhibition, “the spatial representations of her pieces redefine the notion of physical space by warping, pulling and pushing the boundaries of the galleries until the viewer is left with architectonic interpretations that create new and unfamiliar interior landscapes,” in the words of the exhibition’s organizer, Kenny Schachter.

No matter how you describe it, the show breaks new ground, foreshadowing a hybrid: architectural art.

Customer Background:

Zaha Hadid is known as an innovative architect who constantly tests the boundaries of architecture, urbanism and design. In the Sonnabend exhibition, “the spatial representations of her pieces redefine the notion of physical space by warping, pulling and pushing the boundaries of the galleries until the viewer is left with architectonic interpretations that create new and unfamiliar interior landscapes,” in the words of the exhibition’s organizer, Kenny Schachter.

No matter how you describe it, the show breaks new ground, foreshadowing a hybrid: architectural art.

The Project Itself:

Working closely with Zaha’s talented architects, CCTI utilized the provided 3D models of the sculptures to begin the fabrication process. Creating the two mega-works involved CNC cutting numerous intricate shapes per stalactite all of which were then meticulously joined in the composite phase. Steel rods were run down the middle of each piece to allow hanging. The pieces then received their signature, high-gloss finish courtesy of Ichiban Yacht Painters in Bristol, Rhode Island.

Figuring out how to install “Stalactites” was the next challenge. “We came up with three mounting scenarios just to cover all the bases, because there was no time to spare,” says Hassett. In the end they used elements of all three. “There was nothing but sheetrock hanging from the ceiling of the gallery, so we had to create a structurally sound mount that could support the eighteen individual stalactites. It was like putting a giant jigsaw puzzle together upside down, working with pieces that weighed hundreds of pounds.” In the end, bolts were integrated in the tops of the stalactites and the larger ones were actually screwed into the ceiling. The final outcome was success with the sculptures fabricated flawlessly and on time.

Follow Up:

At the end of the exhibit, the CCTI crew returned to the Sonnabend Art Gallery in Manhattan to disassemble all of the sculptures, return the gallery to its original presentation, and transport the sculptures back to the Bath, Maine, facility at CCTI. Custom, transportable packaging of each sculpture was prepared with special foam inserts to protect each individual sculpture from harm.

The Lightweighting Of Automated Machines

Today, automated manufacturers are experiencing a revolution in the output of their machines by replacing aluminum with a composite matrix. And these new, innovative machines are demonstrating measurable improvement on ROI.

Ask Bob Bartlett, lead engineer for Engineered Automation of Maine (EAM). He first observed an efficient, lightweight end-of-arm tool while visiting the manufacturing facility of a Fortune 500 company. He was surprised to learn that the lightweight carbon fiber tooling plates were made by Custom Composite Technologies—a Maine company in his own backyard. He was told by production managers that product reliability, expertise, and service had cemented a longstanding partnership between their company and Custom Composites.

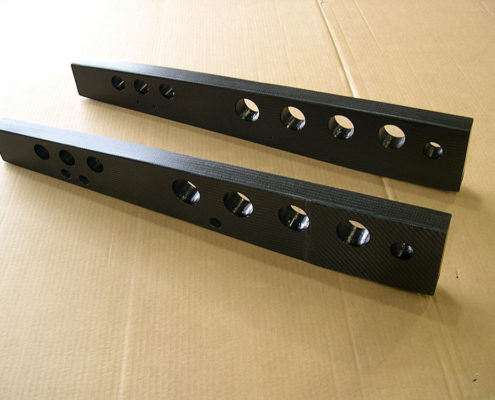

Bob contacted Steve Hassett in 2013 with a napkin sketch of their aluminum end-of-arm tooling. The first carbon fiber arm was built and the cycle time of the mold opening was reduced by 20% (from 1.5 seconds to 1.2 seconds).

Steve and Bob went back to the drawing board and reduced the weight of the arm again, without compromising the integrity or performance of the machine. During the last set of molds, fabricated in 2017, the cycle time had been brought down to one second, an additional 17% increase in output.

Custom Composites continues to fabricate custom carbon fiber tooling plates for that Fortune 500 company and now, EAM. We welcome inquiries from innovative companies looking to improve their product performance through the application of composite materials.
